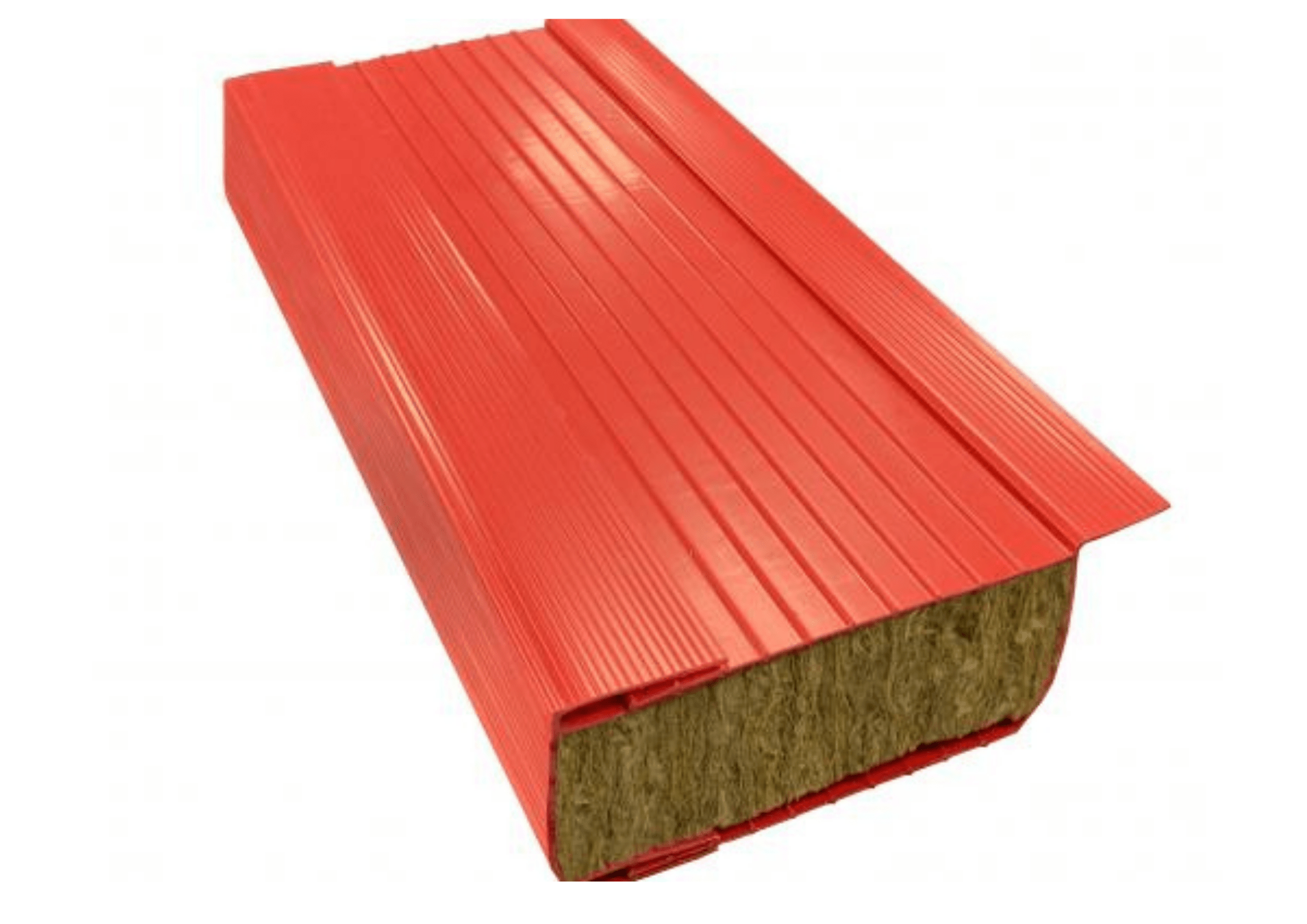

REDSHIELD® Cavity Barrier Rebated

REDSHIELD is a true one-product cavity barrier which fulfils the fire integrity and insulation requirements of Part B without relying on additional lining materials along with providing the necessary thermal and DPC properties of a cavity closer.

The unique construction allows the product to be adaptable to suit various cavity sizes, helping to maintain a continuous seal to a range of cavity widths especially those that may 'stray' in size.

The construction incorporates a mineral fibre wool insulating core which provides the 30 minutes' integrity and 15 minutes insulation of a cavity barrier as well as providing a solution to cold bridging problems acting as a thermal cavity closer and DPC.

Easily incorporated into a new build or refurbishment situations, for standard and rebated details with no special fixing requirements. Once installed REDSHIELD will last the lifetime of the building.

· True one-product cavity barrier

· Exceeds the mandatory 30 minutes' integrity and 15 minutes' insulation requirement as per Building Regulation Approved Document B

· Acts as a thermal cavity closer, DPC and cavity fire barrier

· Tested at Warringtonfire to BS EN 1366-4:2006+A1:2010 independently of other detail

· Closer sizes available to suit a variety of cavity wall widths

· Easily incorporated into a new build or refurbishment situation

· Products available for standard or rebated reveals

· K-Value 0.039 W/mK

· Rebated

· Information Sheet - CLICK HERE
