Kingspan Thermawall TW50 is a high performance partial fill cavity wall insulation, offering unparalleled thermal efficiency with a conductivity of just 0.022 W/mK.
Designed for ease of use, these high-performance rigid thermoset polyisocyanurate (PIR) insulation boards are not only simple to cut and handle but also come in a variety of thicknesses to suit your specific insulation needs.
Key Features and Advantages:
- Superior Thermal Efficiency: Stands among the top cavity wall insulation options, providing significant energy savings and enhancing building comfort.
- Moisture Resistance: Maintains a clear cavity, effectively resisting moisture penetration and ensuring long-term durability and protection.
- Enhanced Thermal Resistance: Low emissivity foil facings on both sides significantly boost the cavity's thermal resistance, contributing to an overall improvement in building energy performance.
- NHBC Compliant: Meets the National House Building Council (NHBC) technical requirements when installed with a 50 mm residual cavity, ensuring compliance with construction standards.
- Versatile Installation: Easily tailored to fit around awkward details, making it suitable for a wide range of construction projects.
Application:

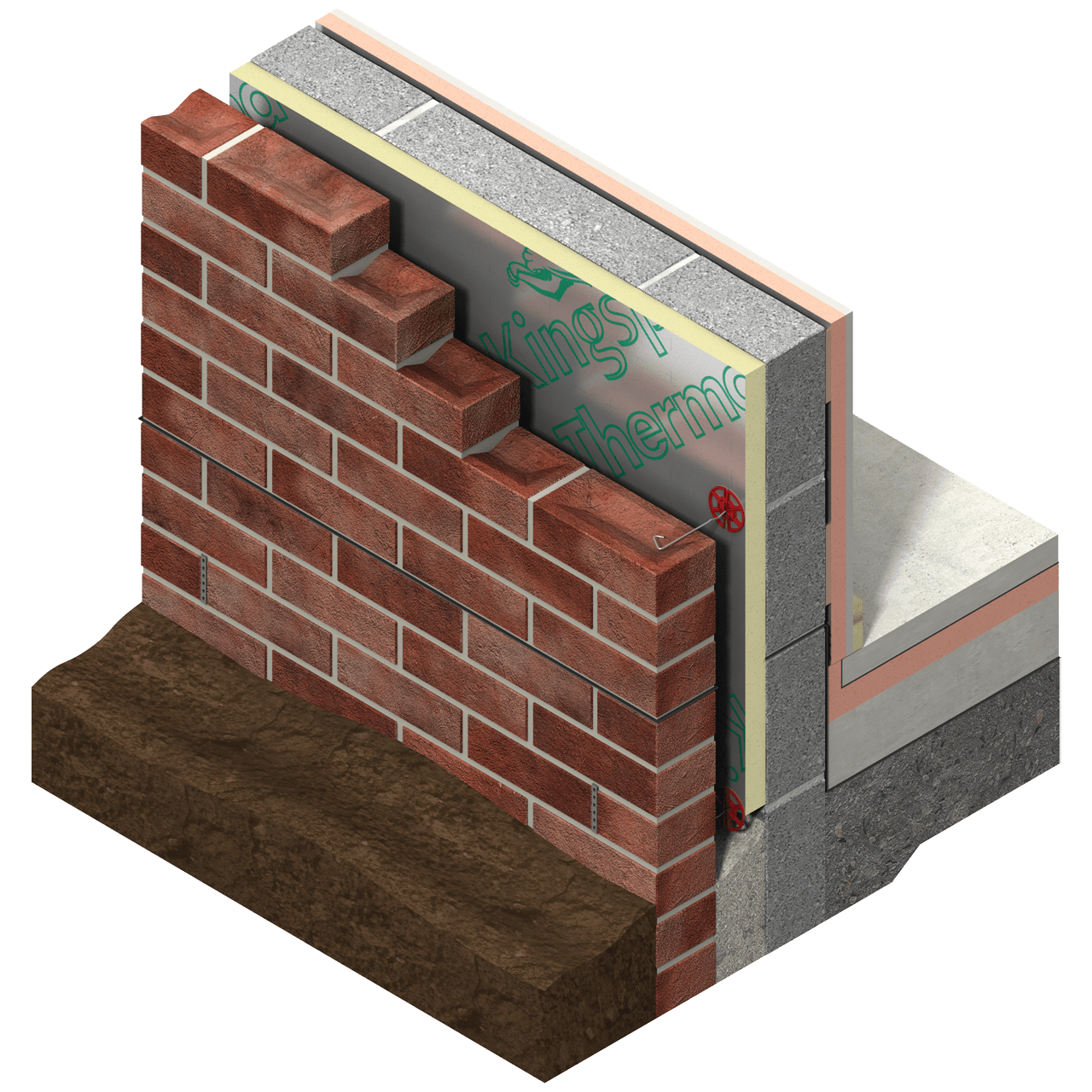

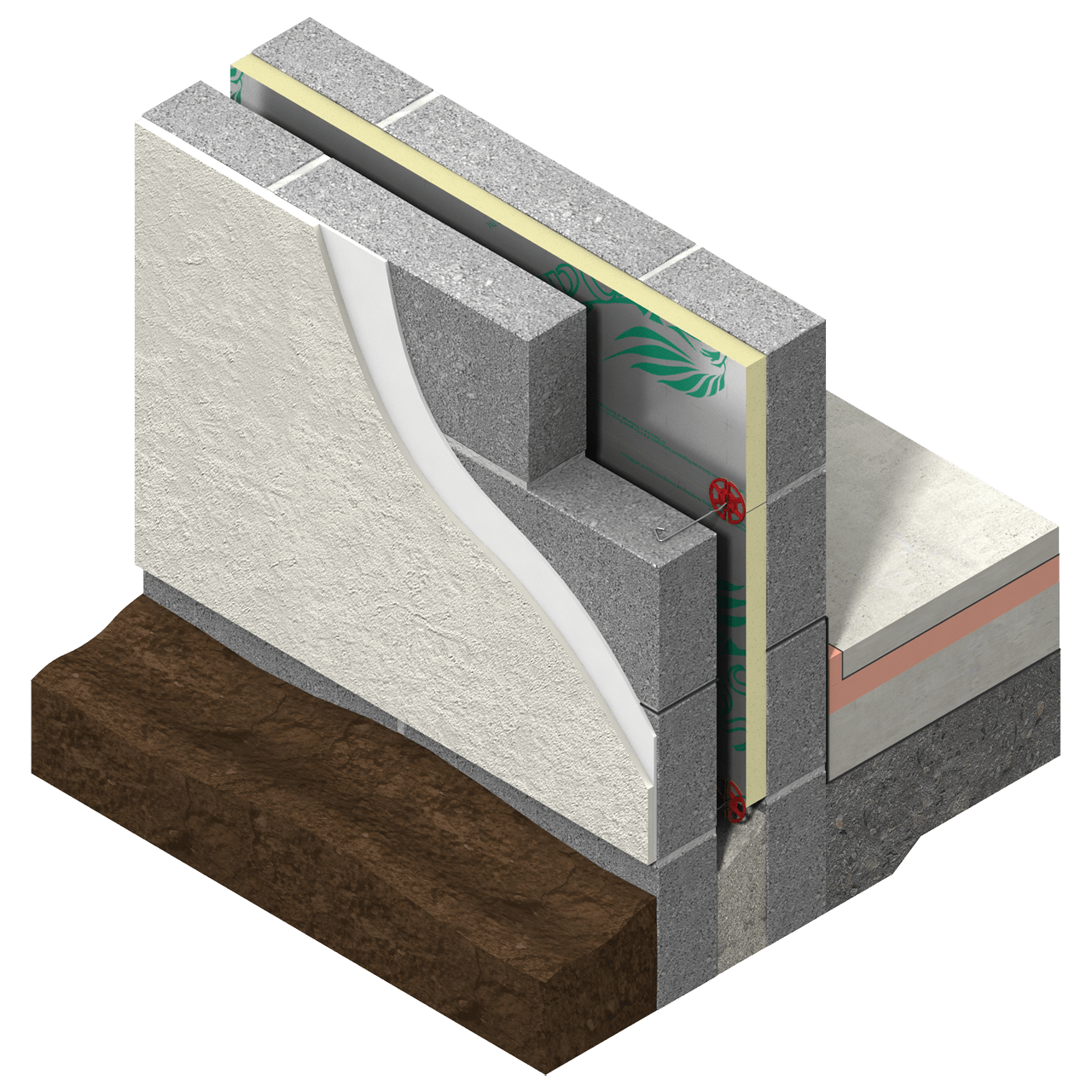

Ideal for partial fill cavity wall insulation, Thermawall TW50 is a versatile solution that can be used in both new build projects and refurbishments to achieve exceptional energy efficiency and meet stringent building regulations.
Technical Specifications:
- Material: High-performance rigid thermoset polyisocyanurate (PIR) insulation for optimal insulation performance.
- Thermal Conductivity: Boasts a low thermal conductivity of 0.022 W/mK, ensuring superior insulation efficiency.
- Facings: Features low emissivity composite foil facings on both sides, autohesively bonded to enhance thermal resistance.
- Dimensions: Available in standard widths of 450 mm and lengths of 1200 mm, with thicknesses ranging from 40 to 100 mm, accommodating diverse construction requirements.
- Fire Performance: Holds a Euroclass F rating under System 4 AVCP, adhering to safety standards.
- Compressive Strength: Exhibits a compressive strength exceeding 140 kPa at 10% compression, demonstrating durability and resilience.
Choose Kingspan Thermawall TW50 for your next construction project to benefit from its advanced insulation properties. With TW50, you're not just insulating your building; you're investing in energy efficiency, moisture resistance, and compliance, ensuring a safer, more comfortable environment for occupants.
DOWNLOADS
Kingspan Thermawall TW50 Cavity Wall Insulation Brochure
| Feature | Values |
|---|
| Brand: | Kingspan |
| Length: | 1200 mm |
| Width: | 450 mm |
| Thickness: | 40 mm |
| Material: | Polyisocyanurate |
| Unit Coverage: | 6.48 M² |
| Manufactures Part Number: | 100000001870 |
| Pack SIze: | 12 |
| Thermal Conductivity: | 0.022 W/mK |
| Brand: | Kingspan |
| Length: | 1200 mm |
| Width: | 450 mm |
| Thickness: | 50 mm |
| Material: | Polyisocyanurate |
| Unit Coverage: | 5.4 M² |
| Manufactures Part Number: | 100000001872 |
| Pack SIze: | 10 |
| Thermal Conductivity: | 0.022 W/mK |
| Brand: | Kingspan |
| Length: | 1200 mm |
| Width: | 450 mm |
| Thickness: | 60 mm |
| Material: | Polyisocyanurate |
| Unit Coverage: | 2.6 M² |
| Pack SIze: | 8 |
| Thermal Conductivity: | 0.022 W/mK |
| Brand: | Kingspan |
| Length: | 1200 mm |
| Width: | 450 mm |
| Thickness: | 70 mm |
| Material: | Polyisocyanurate |
| Unit Coverage: | 2.9 M² |
| Pack SIze: | 6 |
| Thermal Conductivity: | 0.022 W/mK |
| Brand: | Kingspan |
| Length: | 1200 mm |
| Width: | 450 mm |
| Thickness: | 75 mm |
| Material: | Polyisocyanurate |
| Unit Coverage: | 3.0 M² |
| Pack SIze: | 6 |
| Thermal Conductivity: | 0.022 W/mK |
| Brand: | Kingspan |
| Length: | 1200 mm |
| Width: | 450 mm |
| Thickness: | 100 mm |
| Material: | Polyisocyanurate |
| Unit Coverage: | 2.7 M² |
| Manufactures Part Number: | 100000001881 |
| Pack SIze: | 5 |
| Thermal Conductivity: | 0.022 W/mK |
