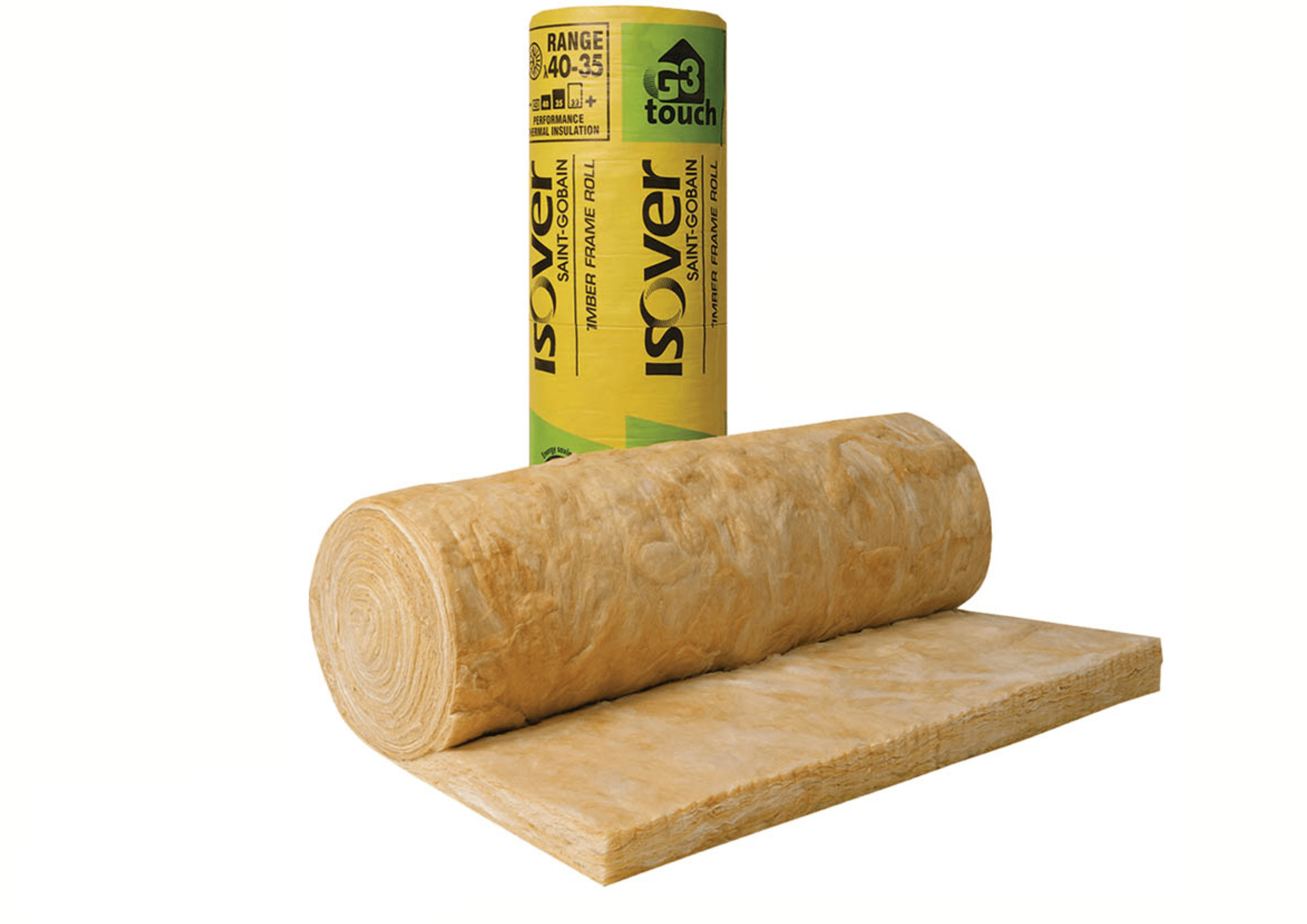

Isover Timber Frame Party Wall Insulation Roll

Timber Frame Party Wall Roll is a glass mineral wool roll that can be used to help reduce the passage of sound across a timber frame separating (party) wall and minimise air movement within the cavity, improving its thermal performance.

When used as part of Robust Detail separating wall constructions, it removes the need for costly pre-completion sound testing and can help exceed acoustic performance requirements set out in Approved Document E (England & Wales) and Section 5 (Scotland).

Product Features and Benefits

1.20m wide glass mineral wool rolls

Suitable for three Robust Detail constructions (E-WT-1, E-WT-2 & V-WT-2)

Can be also used in PCT (pre-completion testing) timber frame party wall constructions

Manufactured from up to 75% recycled glass

Achieves a Eurofins Gold certification, the highest accreditation for indoor air quality

Achieves an A+ generic rating within the BRE Global Green

Product Benefits

Thermal Bypass Solution - Can achieve a zero U-value for party walls, as defined in Building Regulations (Approved Document L1A, Table 3), when fully filling the party wall cavity and in combination with mineral wool filled cavity barriers at the edges of the cavity.

Excellent Acoustic Performance - Helps reduce unwanted noise between attached properties when used as part of a Robust Detail construction.

Robust Detail Compliant - Can be considered for Robust Detail constructions E-WT-1, E-WT-2 and V-WT-2.

Saves Time and Cost - When used as part of a Robust Detail construction, it removes the need for costly pre-completion sound testing, making it a more cost effective solution to implement.

Fire Classification - Achieves a Euroclass A1 Reaction to Fire classification, according to EN 13501-1.

Data Sheet -  Click Here
